New Generation Tea Bag Filter Paper Packing Machine With Thread And Tag For Tea Crushed
Facture:
1. External sealing paper is controlled by stepping motor. Stable bag length, accurate positioning.
2. Adopt PID thermo regulator to guarantee more accurate temperature.
3. Adopt PLC to control the operation of the whole machine. Human-computer interface, easy operation.
4. All the parts of accessible materials are made of SUS403 stainless steel to ensure the products are hygienic and reliable.
5. Parts of working cylinder apply components imported with original packaging to ensure precise and stable performance.
6. The attachments can implement the flat cut, date printing, easy-to-tear-function, etc.
Quick Details:
1. Widely use in daily necessities, cosmetics, food, medical etc many industries.
2. Adjust width of bag forming according to the product height width.
3. With waste collection, make the enviroment neat and clean.
4. Automatic counting is available to facilitate manual entry into the box.
5. The packaging material is consumable.
6. Packaging machine can be adapted to specific requirements.
Specifications:
| Model |
SN-169 |
| Measurement method | Manual placement of chain bucket |
| Size of outer bag |
(W)75-90mm(L)80-120mm |
|
Size of inner bag |
(W)45-80mm(L)50-80mm |
| Packaging speed |
1-15g |
|
Max.Packing speed |
30-40 bags/min |
| Supply Voltage |
3500 W 220v/50hz, single phase |
| Equipment shape |
1750*740*1950mm |
| Machine Weght | Approx 350kg |
| Optional device | Date coding machine, filling device, finished product conveyor |
| Processing customization | Customized processing is available |
| Material Type | Solids |
|
Packing material |
Inner bag is filter paper Outer bag is Paper/PE, plastic/foil/PE and plastic/PE |
Machine Details:
|

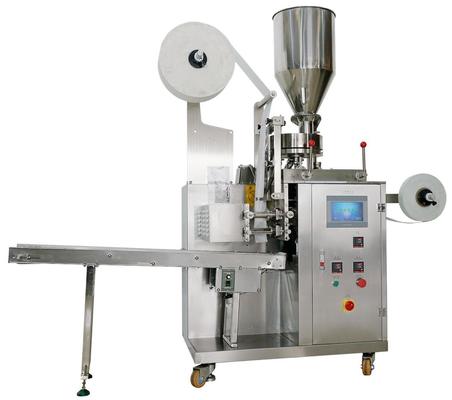

1. Vertical Tea Bag Packing Machine It can realize the one-step process of automatic bag forming, material filling, packaging and sealing and cutting etc |
 |
|
2. Ribbon coding machine |
|
|
3. Intelligent touch screen control Adopts touch screen LCD display Receives contact input signals Replaces mechanical button panel |
|
|
4.Turntable measuring cup The measuring cup drives the material to rotate, reducing material wear and tear, suitable for packing all kinds of tea |
|
|
5. Self-locking gimbal Move at any time as required, press to self-lock and lock at any time |
|
| 6.Packing neat and aesthetics |
|
